Bộ chuyển đổi quang điện công nghiệp industrial media converter AOA IMC1100

Bộ chuyển đổi quang điện công nghiệp industrial media converter AOA IMC1100

Tag : AOA bộ chuyển đổi quang điện media converter

RJ45 support auto MDI/MDI-Xfunction.
Auto-negotiation speed, half/full-duplex
Built-in LFP (Link-fault-pass-through) function
Jumbo frame: 9kbytes
Operating temperature (-40˚C ~ +85 ˚C)
Wide-range redundant power design (12~56VDC)
Power polarity reverse protect
IP-40protection
Support Ethernet ESD protection
DIN-Rail and Wall-MountedInstallation

Liên hệ

Thông tin chi tiết

OVERVIEW

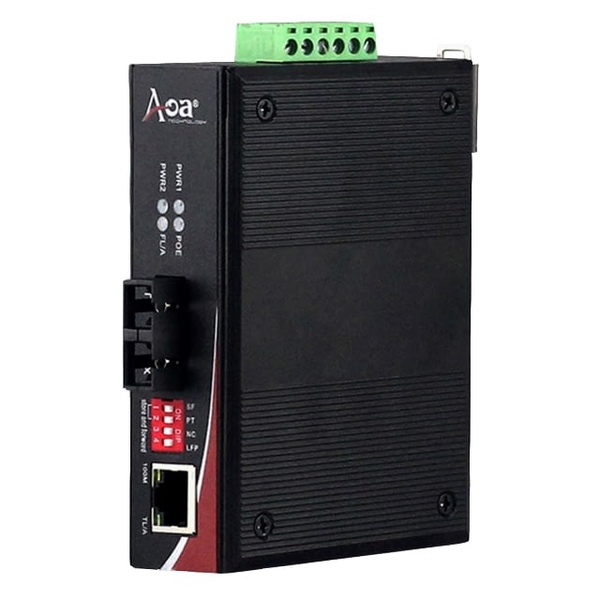

The IMC1100 series Industrial Media Converter is designed to extend the distance of a network by converting Fast Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.

The IMC1100 features a 100Base-FX fiber port and a 10/100Base-TX twisted-pair port. The fiber optic port features SC connector and operating distance from 2km to 120km depending on different Model. The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100m.

The small size and dual external power supply inputs of the IMC1100 series allows them to be used almost anywhere in harsh environmental conditions; wide range of temperature can be -40 ˚C ~ +85 ˚C; used in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications. Additionally, they can be installed by DIN-Rail or wall-mounted, allowing users to deploy any mix of network conversions required.

PARAMETER

Standards	IEEE802.3 10BaseT IEEE802.3u 100BaseT(X) IEEE802.3x Flow control and back pressure IEEE802.1d Spanning Tree
Performance	Processing Type: Store and Forward, Cut-through Back Bandwidth: 0.4Gbps MAC Address Size: 2Kbit Packet Buffer Size: 1Mbit Time Delay: <10usFrame: 9kbytes
Copper Port	Data Rate: 10/100M Connector: RJ45 Distance: 100m
Fiber Port	Data Rate: 155M Connector: SC as default, FC/ST Optional Distance: MMF 2km,SMF 20/40/80/100/120km, Bi-di:20/40/80/100/120km
Dip-switch	Dip1 ON + Dip2 ON = Modified Cut-through Mode Dip1 ON + Dip2 Off = Converter Mode Dip1 Off + Dip2 ON = Cut-through Dip1 Off + Dip2 off = Store and forward mode Dip4 ON = LFP Enable; Dip4 Off= LFP Disable
LED indicators	PWR1: ON=Power Connected PWR2: ON= Power Connected FL/A: ON=Fiber Connected; Active=Data Transmitting TL/A: ON=Copper Connected; Active= Data Transmitting 100M: ON=100M Data Rate Transmitting
Power	Input Voltage: 12~56 VDC, redundant power inputs Power Consumption: ≤5W Protection: Overload Current; Reverse Polarity Connector: Terminal Block
Environment	Operating Temperature: –40 ˚C ~ +85 ˚C Storage Temperature: -40 ˚C ~ +95 ˚C Relative Humidity: 5-95% (no condensation)
Physical Characteristics	Housing: IP40 Protection, Aluminum Alloy Installation: DIN-rail mounting, wall mounting(with optional kit) Dimension: 1158135mm(device); 22017573mm(packing) Weight: 0.30kg(device); 0.43kg(device with packing)

ORDER INFORMATION

Model No.	Description
IMC1100-M02	10/100M MMF,1310nm,SC,2km
IMC1100-S20	10/100M SMF,1310nm,SC,20km
IMC1100-S40	10/100M SMF,1310nm,SC,40km
IMC1100-A20	10/100M Bi-di,TX1310/RX1550nm,SC,20km
IMC1100-B20	10/100M Bi-di,TX1550/RX1310nm,SC,20km
IMC1100-A40	10/100M Bi-di,TX1310/RX1550nm,SC,40km
IMC1100-B40	10/100M Bi-di,TX1550/RX1310nm,SC,40km
Note: 1. Power supply provided by user or ordered additionally 2. SC connector as default, FC/ST as request
